Introduction

mini01

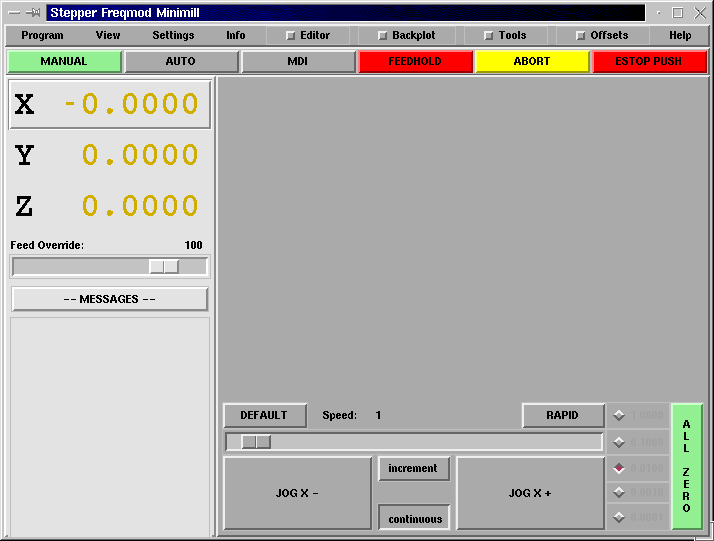

Figure 1. The Mini Graphical Interface (upon starting)

Mini was designed to be a full screen graphical interface. It was first written for the Sherline CNC but is available for anyone to use, copy, and distribute under the terms of the GPL copyright.

Rather than popup new windows for each thing that an operator might want to do, Mini allows you to display these within the regular screen. Parts of this chapter are copied from the instructions that were written for that mill by Joe Martin and Ray Henry. [1]

Screen layout

mini02

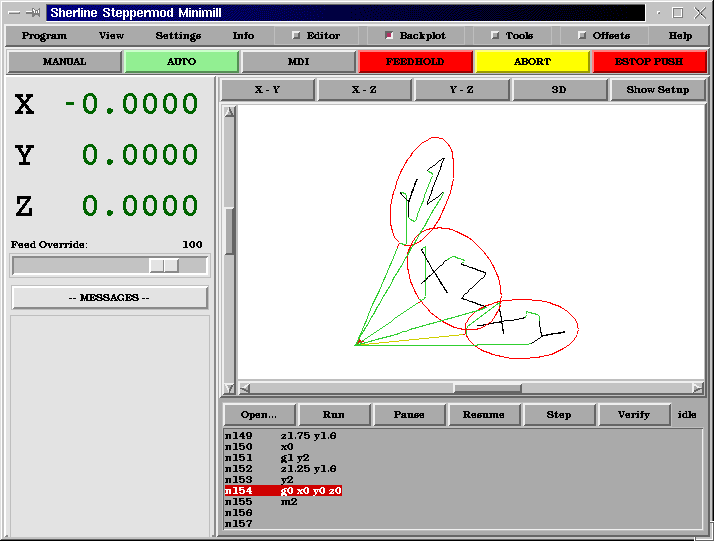

Figure 2. Mini Display for a Running Machinekit

The Mini screen is laid out in several sections. These include a menu across the top, a set of main control buttons just below the menu, and two rather large columns of information that show the state of your machine and allow you to enter commands or programs.

When you compare starting screen with run screen you will see many differences. In the second figure

  • each axis has been homed — the display numbers are dark green

  • the Machinekit mode is auto — the auto button has a light green background

  • the backplotter has been turned on — backplot is visible in the pop-in window

  • the tool path from the program is showing in the display.

Once you start working with Mini you will quickly discover how easily it shows the conditions of the Machinekit and allows you to make changes to it.

The first row is the menu bar across the top. Here you can configure the screen to display additional information. Some of the items in this menu are very different from what you may be accustomed to with other programs. You should take a few minutes and look under each menu item in order to familiarize yourself with the features that are there.

The menu includes each of the following sections and subsections.

  • 'Program' - This menu includes both reset and exit functions. Reset will return the Machinekit to the condition that it was in when it started. Some startup configuration items like the normal program units can be specified in the ini file.

  • 'View' - This menu includes several screen elements that can be added so that you can see additional information during a run. These include

    • 'Position_Type' - This menu item adds a line above the main position displays that shows whether the displays are in inches or metric and whether they are Machine or Relative location and if they are Actual positions or Commanded positions. These can be changed using the Settings menu described below.

    • 'Tool_Info' - This adds a line immediately below the main position displays that shows which tool has been selected and the length of offset applied.

    • 'Offset_Info' - adds a line immediately below the tool info that shows what offsets have been applied. This is a total distance for each axis from machine zero.

    • 'Show_Restart' - adds a block of buttons to the right of the program display in auto mode. These allow the operator to restart a program after an abort or estop. These will pop in whenever estop or abort is pressed but can be shows by the operator anytime auto mode is active by selecting this menu item.

    • 'Hide_Restart' - removes the block of buttons that control the restart of a program that has been aborted or estopped.

    • 'Show_Split_Right' - changes the nature of the right hand column so that it shows both mode and pop-in information.

    • 'Show_Mode_Full' - changes the right hand column so that the mode buttons or displays fill the entire right side of the screen. In manual mode, running with mode full you will see spindle and lube control buttons as well as the motion buttons.

    • 'Show_Popin_Full' - changes the right hand column so that the popin fills the entire right side of the screen.

  • 'Settings' - These menu items allow the operator to control certain parameters during a run.

    • 'Actual_Position' - sets the main position displays to actual(machine based) values.

    • 'Commanded_Position' - sets the main position displays to the values that they were commanded to.

    • 'Machine_Position' - sets the main position displays to the absolute distance from where the machine was homed.

    • 'Relative_Position' - sets the main position displays to show the current position including any offsets like part zeros that are active. For more information on offsets see the chapter on coordinate systems.

  • 'Info' - lets you see a number of active things by writing their values into the MESSAGE pad.

    • 'Program_File' - will write the currently active program file name.

    • 'Editor_File' - will write the currently active file if the editor pop in is active and a file has been selected for editing.

    • 'Parameter_File' - will write the name of the file being used for program parameters. You can find more on this in the chapters on offsets and using variables for programming.

    • 'Tool_File' - will write the name of the tool file that is being used during this run.

    • 'Active_G-Codes' - will write a list of all of the modal program codes that are active whenever this item is selected. For more information about modal codes see the introductory part programming chapter.

  • 'Help' - opens a text window pop in that displays the contents of the help file.

You will notice between the info menu and the help menu there are a set of four buttons. These are called check buttons because they have a small box that shows red if they have been selected. These four buttons, Editor, Backplot, Tools, and Offsets pop in each of these screens. If more than one pop-in is active (button shown as red) you can toggle between these pop-ins by right clicking your mouse.

Control Button Bar

Below the menu line is a horizontal line of control buttons. These are the primary control buttons for the interface. Using these buttons you can change mode from [MANUAL] to [AUTO] to [MDI] (Manual Data Input). These buttons show a light green background whenever that mode is active.

You can also use the [FEEDHOLD], [ABORT], and [ESTOP] buttons to control a programmed move.

MANUAL

This button or pressing <F3> sets the Machinekit to Manual mode and displays an abbreviated set of buttons the operator can use to issue manual motion commands. The labels of the jog buttons change to match the active axis. Whenever Show_Mode_Full is active in in manual mode, you will see spindle and lube control buttons as well as the motion buttons. A keyboard <i> or <I> will switch from continuous jog to incremental jog. Pressing that key again will toggle the increment size through the available sizes.

miniman

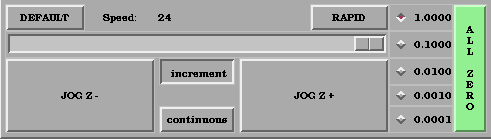

Figure 3. Manual Mode Buttons
From the Sherline CNC Operators Manual:

A button has been added to designate the present position as the home position. We felt that a machine of this type (Sherline 5400) would be simpler to operate if it didn’t use a machine home position. This button will zero out any offsets and will home all axes right where they are.

Axis focus is important here. Notice in startup figure that in manual mode you see a line or 'groove' around the X axis to highlight its position display. This groove says that X is the active axis. It will be the target for jog moves made with the 'plus' and 'minus' jog buttons. You can change axis focus by clicking on any other axis display. You can also change axis focus in manual mode if you press its name key on your keyboard. Case is not important here. [Y] or [y] will shift the focus to the Y axis. [A] or [a] will shift the focus to the A axis. To help you remember which axis will jog when you press the jog buttons, the active axis name is displayed on them.

Machinekit can jog (move a particular axis) as long as you hold the button down when it is set for 'continuous', or it can jog for a preset distance when it is set for 'incremental'. You can also jog the active axis by pressing the plus [+] or minus [-] keys on the keyboard. Again, case is not important for keyboard jogs. The two small buttons between the large jog buttons let you set which kind of jog you want. When you are in incremental mode, the distance buttons come alive. You can set a distance by pressing it with the mouse. You can toggle between distances by pressing [i] or [I] on the keyboard. Incremental jog has an interesting and often unexpected effect. If you press the jog button while a jog is in progress, it will add the distance to the position it was at when the second jog command was issued. Two one-inch jog presses in close succession will not get you two inches of movement. You have to wait until the first one is complete before jogging again.

Jog speed is displayed above the slider. It can be set using the slider by clicking in the slider’s open slot on the side you want it to move toward, or by clicking on the [Default] or [Rapid] buttons. This setting only affects the jog move while in manual mode. Once a jog move is initiated, jog speed has no effect on the jog. As an example of this, say you set jog mode to 'incremental' and the increment to 1 inch. Once you press the [Jog] button it will travel that inch at the rate at which it started.

AUTO

When the Auto button is pressed, or <F4> on the keyboard, and Machinekit is set to that mode, a set of the traditional auto operation buttons is displayed, and a small text window opens to show a part program. During run the active line will be displayed as white lettering on a red background.

In the auto mode, many of the keyboard keys are bound to controls. For example, the numbers above the qwerty keys are bound to feed rate override. The 0 sets 100%, 9 sets 90% and such. Other keys work much the same as they do with the tkMachinekit graphical interface.

miniauto
Figure 4. Auto Mode

Auto mode does not normally display the active or modal codes. If the operator wishes to check these, use menu Info→Active_G-Codes. This will write all modal codes onto the message scratch pad.

If abort or estop is pressed during a run, a set of buttons will display to the right of the text that allow the operator to shift the restart line forward or backward. If the restart line is not the last active line, it will be highlighted as white letters on a blue background. Caution, a very slow feed rate, and a finger poised over the pause button is advised during any program restart.

From the Sherline CNC Operators Manual:

The real heart of CNC machine tool work is the auto mode. Sherline’s auto mode displays the typical functions that people have come to expect from Machinekit. Along the top are a set of buttons which control what is happening in auto mode. Below them is the window that shows the part of the program currently being executed. As the program runs, the active line shows in white letters on a red background. The first three buttons, [Open], [Run], and [Pause] do about what you’d expect. [Pause] will stop the run right where it is. The next button, [Resume], will restart motion. They are like feedhold if used this way. Once [Pause] is pressed and motion has stopped, [Step] will resume motion and continue it to the end of the current block. Press [Step] again to get the motion of the next block. Press [Resume] and the interpreter goes back to reading ahead and running the program. The combination of [Pause] and [Step] work a lot like single block mode on many controllers. The difference is that [Pause] does not let motion continue to the end of the current block. Feed rate Override …​ can be very handy as you approach a first cut. Move in quickly at 100 percent, throttle back to 10% and toggle between [Feedhold] and 10% using the pause button. When you are satisfied that you’ve got it right, hit the zero to the right of nine (feedrate=100%) and go.

The [Verify] button runs the interpreter through the code without initiating any motion. If Verify finds a problem it will stop the read near the problem block and put up some sort of message. Most of the time you will be able to figure out the problem with your program by reading the message and looking in the program window at the highlighted line. Some of the messages are not very helpful. Sometimes you will need to read a line or two ahead of the highlight to see the problem. Occasionally the message will refer to something well ahead of the highlight line. This often happens if you forget to end your program with an acceptable code like %, M2, M30, or M60.

MDI

The MDI button or <F5> sets the Manual Data Input mode. This mode displays a single line of text for block entry and shows the currently active modal codes for the interpreter.

From the Sherline CNC Operators Manual:

MDI mode allows you to enter single blocks and have the interpreter execute them as if they were part of a program (kind of like a one-line program). You can execute circles, arcs, lines and such. You can even test sets of program lines by entering one block, waiting for that motion to end, and then enter the next block. Below the entry window, there is a listing of all of the current modal codes. This listing can be very handy. I often forget to enter a g00 before I command a motion. If nothing happens I look down there to see if g80 is in effect. G80 stops any motion. If it’s there I remember to issue a block like g00 x0 y0 z0. In MDI you are entering text from the keyboard so none of the main keys work for commands to the running machine. [F1] will Estop the control.

Since many of the keyboard keys are needed for entry, most of the bindings that were available in auto mode are not available here.

[FEEDHOLD] — [CONTINUE]

Feedhold is a toggle. When the Machinekit is ready to handle or is handling a motion command this button shows the feedhold label on a red background. If feedhold has been pressed then it will show the continue label. Using it to pause motion has the advantage of being able to restart the program from where you stopped it. Feedhold will toggle between zero speed and whatever feed rate override was active before it was pressed. This button and the function that it activates is also bound to the pause button on most keyboards.

[ABORT]

The abort button stops any motion when it is pressed. It also removes the motion command from the Machinekit. No further motions are cued up after this button is pressed. If you are in auto mode, this button removes the rest of the program from the motion cue. It also records the number of the line that was executing when it was pressed. You can use this line number to restart the program after you have cleared up the reasons for pressing it.

[ESTOP]

The estop button is also a toggle but it works in three possible settings.

  • When Mini starts up it will show a raised button with red background with black letters that say 'ESTOP PUSH'. This is the correct state of the machine when you want to run a program or jog an axis. Estop is ready to work for you when it looks like this.

  • If you push the estop button while a motion is being executed, you will see a recessed gray button that says 'ESTOPPED'. You will not be able to move an axis or do any work from the Mini gui when the estop button displays this way. Pressing it with your mouse will return Mini to normal ready condition.

  • A third view is possible here. A recessed green button means that estop has been take off but the machine has not been turned on. Normally this only happens when <F1> estop has been pressed but <F2> has not been pressed.

Joe Martin says, "When all else fails press a software [ESTOP]." This does everything that abort does but adds in a reset so that the Machinekit returns to the standard settings that it wakes up on. If you have an external estop circuit that watches the relevant parallel port or DIO pin, a software estop can turn off power to the motors.

From the Sherline CNC Operators Manual:

Most of the time, when we abort or E-Stop it’s because something went wrong. Perhaps we broke a tool and want to change it. We switch to manual mode and raise the spindle, change tools, and assuming that we got the length the same, get ready to go on. If we return the tool to the same place where the abort was issued, Machinekit will work perfectly. It is possible to move the restart line back or ahead of where the abort happened. If you press the [Back] or [Ahead] buttons you will see a blue highlight that shows the relationship between the abort line and the one on which Machinekit will start up again. By thinking through what is happening at the time of the restart you can place the tool tip where it will resume work in an acceptable manner. You will need to think through things like tool offsets, barriers to motion along a diagonal line, and such, before you press the [Restart] button.

Left Column

There are two columns below the control line. The left side of the screen displays information of interest to the operator. There are very few buttons to press here.

Axis Position Displays

The axis position displays work exactly like they do with tkMachinekit. The color of the letters is important.

  • Red indicates that the machine is sitting on a limit switch or the polarity of a min or max limit is set wrong in the ini file.

  • Yellow indicates that the machine is ready to be homed.

  • Green indicates that the machine has been homed.

The position can be changed to display any one of several values by using the menu settings. The startup or default settings can be changed in the ini file so these displays wake up just the way that you want them.

Feed rate Override

Immediately below the axis position displays is the feed rate override slider. You can operate feed rate override and feedhold in any mode of operation. Override will change the speed of jogs or feed rate in manual or MDI modes. You can adjust feed rate override by grabbing the slider with your mouse and dragging it along the groove. You can also change feed rate a percent at a time by clicking in the slider’s groove. In auto mode you can also set feed override in 10% increments by pressing the top row of numbers. This slider is a handy visual reference to how much override is being applied to programmed feed rate.

Messages

The message display located under the axis positions is a sort of scratch pad for Machinekit. If there are problems it will report them there. If you try to home or move an axis when the [ESTOP] button is pressed, you’ll get a message that says something about commanding motion when Machinekit is not ready. If an axis faults out for something like falling behind, the message pad will show what happened. If you want to remind an operator to change a tool, for example, you can add a line of code to your program that will display in the message box. An example might be (msg, change to tool #3 and press resume). This line of code, included in a program, will display 'change to tool #3 and press resume' in the message box. The word msg, (with comma included) is the command to make this happen; without 'msg,' the message wouldn’t be displayed. It will still show in the auto modes' display of the program file.

To erase messages simply click the message button at the top of the pad or, on the keyboard, hold down the [Alt] key and press the [m] key.

Right Column

The right column is a general purpose place to display and work. Here you can see the modal buttons and text entry or displays. Here you can view a plot of the tool path that will be commanded by your program. You can also write programs and control tools and offsets here. The modal screens have been described above. Each of the popin displays are described in detail below.

Program Editor

miniedit

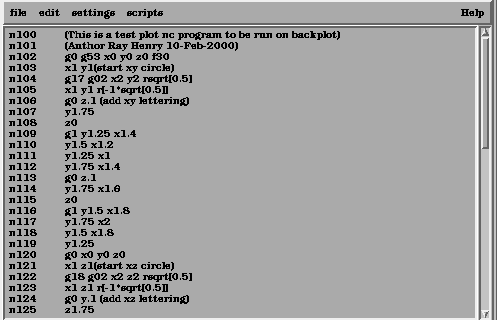

Figure 5. Mini Text Editor

The editor is rather limited compared to many modern text editors. It does not have 'undo' nor 'paste' between windows with the clipboard. These were eliminated because of interaction with a running program. Future releases will replace these functions so that it will work the way you’ve come to expect from a text editor. It is included because it has the rather nice feature of being able to number and renumber lines in the way that the interpreter expects of a file. It will also allow you to cut and paste from one part of a file to another. In addition, it will allow you to save your changes and submit them to the Machinekit interpreter with the same menu click. You can work on a file in here for a while and then save and load if the Machinekit is in Auto mode. If you have been running a file and find that you need to edit it, that file will be placed in the editor when you click on the editor button on the top menu.

Backplot Display

minibkplot

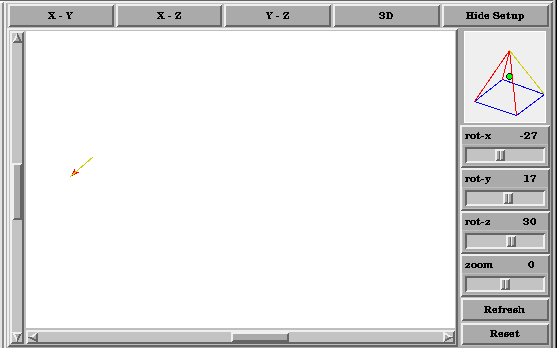

Figure 6. Minis Backplotter

Backplot [Backplot] will show the tool path that can be viewed from a chosen direction. '3-D' is the default. Other choices and controls are displayed along the top and right side of the pop-in. If you are in the middle of a cut when you press one of these control buttons the machine will pause long enough to re-compute the view.

Along the right side of the pop-in there is a small pyramid shaped graphic that tries to show the angle you are viewing the tool path from. Below it are a series of sliders that allow you to change the angle of view and the size of the plot. You can rotate the little position angle display with these. They take effect when you press the [Refresh] button. The [Reset] button removes all of the paths from the display and readies it for a new run of the program but retains your settings for that session.

If backplot is started before a program is started, it will try to use some color lines to indicate the kind of motion that was used to make it. A green line is a rapid move. A black line is a feed rate move. Blue and red indicate arcs in counterclockwise and clockwise directions.

The backplotter with Mini allows you to zoom and rotate views after you have run your program but it is not intended to store a tool path for a long period of time.

Tool Page

The tool page is pretty much like the others. You can set length and diameter values here and they become effective when you press the [Enter] key. You will need to set up your tool information before you begin to run a program. You can’t change tool offsets while the program is running or when the program is paused.

minitool

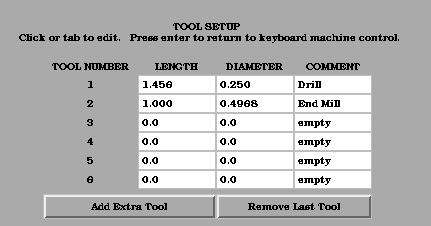

Figure 7. Mini Tool Display

The [Add Tools] and [Remove Tools] buttons work on the bottom of the tool list so you will want to fill in tool information in descending order. Once a new tool has been added, you can use it in a program with the usual G-code commands. There is a 32 tool limit in the current Machinekit configuration files but you will run out of display space in Mini long before you get there.

Tip
You can use Menu > View > Show Popin Full to see more tools if you need.

Offset Page

The offset page can be used to display and setup work offsets. The coordinate system is selected along the left hand side of the window. Once you have selected a coordinate system you can enter values or move an axis to a teach position.

minioffsets

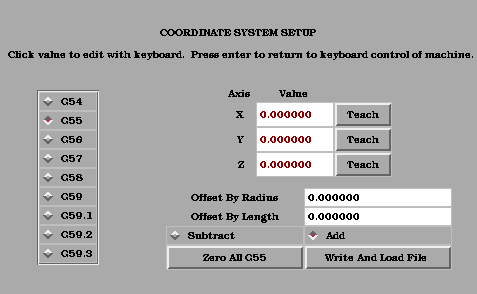

Figure 8. Mini Offset Display

You can also teach using an edgefinder by adding the radius and length to the offset_by widgets. When you do this you may need to add or subtract the radius depending upon which surface you choose to touch from. This is selected with the add or subtract radiobuttons below the offset windows.

The zero all for the active coordinate system button will remove any offsets that you have showing but they are not set to zero in the variable file until you press the write and load file button as well. This write and load file button is the one to use when you have set all of the axis values that you want for a coordinate system.

Keyboard Bindings

A number of the bindings used with tkMachinekit have been preserved with mini. A few of the bindings have been changed to extend that set or to ease the operation of a machine using this interface. Some keys operate the same regradless of the mode. Others change with the mode that Machinekit is operating in.

Common Keys

  • 'Pause' - Toggle feedhold

  • 'Escape' - abort motion

  • 'F1' - toggle estop/estop reset state

  • 'F2' - toggle machine off/machine on state

  • 'F3' - manual mode

  • 'F4' - auto mode

  • 'F5' - MDI mode

  • 'F6' - reset interpreter

The following only work for machines using auxiliary I/O

  • 'F7' - toggle mist on/mist off

  • 'F8' - toggle flood on/flood off

  • 'F9' - toggle spindle forward/off

  • 'F10' - toggle spindle reverse/off

  • 'F11' - decrease spindle speed

  • 'F12' - increase spindle speed

Manual Mode

  • '1-9 0' - set feed override to 10%-90%, 0 is 100%

  • '~' - set feed override to 0 or feedhold

  • 'x' - select X axis

  • 'y' - select Y axis

  • 'z' - select Z axis

  • 'a' - select A axis

  • 'b' - select B axis

  • 'c' - select C axis

  • 'Left Right Arrow' - jog X axis

  • 'Up Down Arrow' - jog Y axis

  • 'Page Up Down' - jog Z axis

  • '- _' - jog the active axis in the minus direction

  • '+ =' - jog the active axis in the plus direction.

  • 'Home' - home selected axis

  • 'i I' - toggle through jog increments

The following only work with a machine using auxiliary I/O

  • 'b' - take spindle brake off

  • 'Alt-b' - put spindle brake on

Auto Mode

  • '1-9,0' - set feed override to 10%-90%, 0 is 100%

  • '~' - set feed override to 0 or feedhold

  • 'o/O' - open a program

  • 'r/R' - run an opened program

  • 'p/P' - pause an executing program

  • 's/S' - resume a paused program

  • 'a/A' - step one line in a paused program

Misc

One of the features of Mini is that it displays any axis above number 2 as a rotary and will display degree units for it. It also converts to degree units for incremental jogs when a rotary axis has the focus.


1. Much of this chapter quotes from a chapter of the Sherline CNC Operators Manual.
