NGCGUI
![ngcgui](/docs/gui/images/ngcgui.png)
Overview
-
'NGCGUI' is a tcl application for using Machinekit subroutines.
-
'NGCGUI' can run as a standalone application or can be embedded in multiple tab pages in the axis gui
-
'PYNGCGUI' is an alternate, python implementation of ngcgui.
-
'PYNGCGUI' can run as a standalone application or can be embedded as a tab page (with its own set of multiple subroutine tabs) in any gui that supports embedding of gladevcp applications. Example guis include: axis, touchy, gscreen and gmoccapy
Using NGCGUI or PYNGCGUI:
-
Tab pages are provided for subroutines specified in the INI file
-
New subroutines tab pages can be added using Custom tab pages
-
Each subroutine tab page provides entry boxes for all subroutine parameters
-
The entry boxes can have a default value and an label that are identified by special comments in the subroutine file
-
Subroutine invocations are concatenated together to form a multiple step program
-
Any single-file gcode subroutine that conforms to ngcgui conventions can be used
-
Any gcmc (Gcode-meta-compiler) program that conforms to ngcgui conventions for tagging variables can be used. (The gcmc executable must be installed separately, see: http://www.vagrearg.org/content/gcmc)
Note
|
NGCGUI and PYNGCGUI implement the same functions and both process .ngc and .gcmc files that conform to a few ngcgui-specific conventions. In this document, the tern NGCGUI generally refers to either application. |
Demonstration Configurations
A number of demonstration configurations are located in the sim directory of the Sample Configurations offered by the Machinekit configuration picker. The configuration picker is on the system’s main menu:
Applications > CNC > Machinekit
Examples are included for the axis, touchy, gscreen, and gmoccapy guis. These examples demonstrate both 3-axis (XYZ) cartesian configurations (like mills) and lathe (XZ) setups. Some examples show the use of a popupkeyboard for touch screen systems and other examples demonstrate the use of files created for the gcmc (Gcode Meta Compiler) application. The touchy examples also demonstrate incorporation of a gladevcp backplot viewer (gremlin_view).
The simplest application is found as:
Sample Configurations / sim / axis / ngcgui /ngcgui_simple
A comprehensive example showing gcmc compatibility is at:
Sample Configurations / sim / axis / ngcgui / ngcgui_gcmc
A comprehensive example embedded as a gladevcp app and using gcmc is at:
Sample Configurations / sim / gscreen / ngcgui / pyngcgui_gcmc
The example sim configurations make use of library files that provide example gcode subroutine (.ngc) files and Gcode-meta-compiler (.gcmc) files:
-
'nc_files/ngcgui_lib'
-
'arc1.ngc' - basic arc using cutter radius compensation
-
'arc2.ngc' - arc speced by center, offset, width, angle (calls arc1)
-
'backlash.ngc' - routine to measure an axis backlash with dial indicator
-

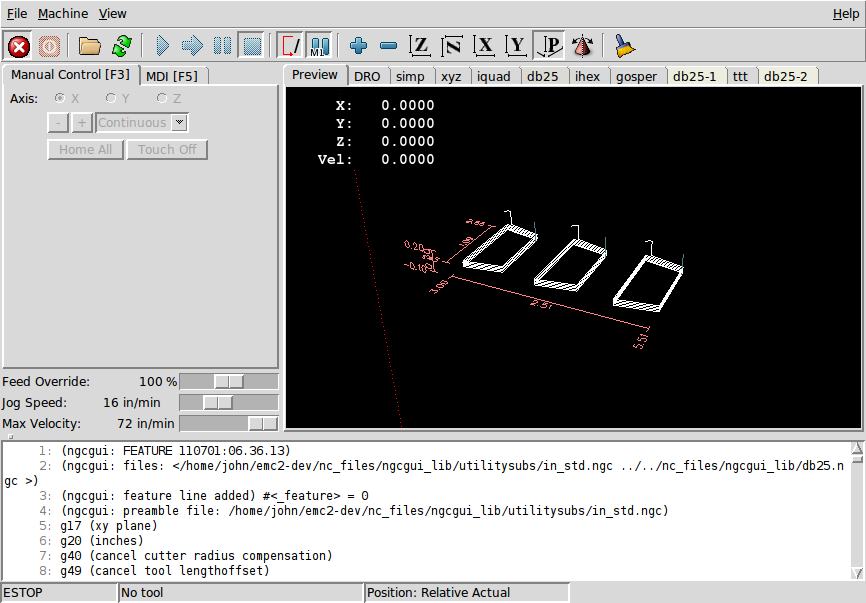

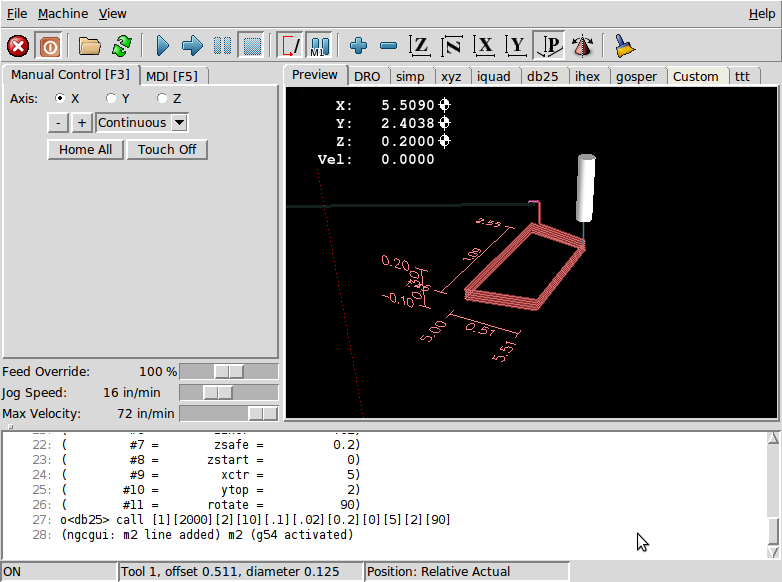

'db25.ngc' - creates a DB25 plug cutout
-
'gosper.ngc' - a recursion demo (flowsnake)
-
'helix.ngc' - helix or D-hole cutting
-
'helix_rtheta.ngc' - helix or D-hole positioned by radius and angle
-
'hole_circle.ngc' - equally spaced holes on a circle
-
'ihex.ngc' - internal hexagon
-
'iquad.ngc' - internal quadrilateral
-
'ohex.ngc' - outside hexagon
-
'oquad.ngc' - outside quadrilateral
-
'qpex_mm.ngc' - demo of qpockets (mm based)
-
'qpex.ngc' - demo of qpockets (inch based)
-
'qpocket.ngc' - quadrilateral pocket
-
'rectangle_probe.ngc' - probe a rectangular area
-
'simp.ngc' - a simple subroutine example that creates two circles
-
'slot.ngc' - slot from connecting two endpoints
-
'xyz.ngc' - machine exerciser constrained to a box shape
-
-
'nc_files/ngcgui_lib/lathe'
-
'g76base.ngc' - gui for g76 threading
-
'g76diam.ngc' - threading speced by major, minor diameters
-
'id.ngc' - bores the inside diameter
-
'od.ngc' - turns the outside diameter
-
'taper-od.ngc' - turns a taper on the outside diameter
-
-
'nc_files/gcmc_lib'
-
'drill.gcmc' - drill holes in rectangle pattern
-
'square.gcmc' - simple demo of variable tags for gcmc files
-
'star.gcmc' - gcmc demo illustrating functions and arrays
-
'wheels.gcmc' - gcmc demo of complex patterns
-
To try a demonstration, select a sim configuration and start the linuxCNC program.
If using the axis gui, press the 'E-Stop'
then 'Machine Power'
then 'Home All'. Pick a ngcgui tab, fill in
any empty blanks with sensible values and press
'Create Feature' then 'Finalize'. Finally press the 'Run'
button to watch it run. Experiment
by creating multiple features and features from different tab pages.
Other guis will have similar functionality but the buttons and names may be different.
Note
|
Notes
The demonstration configs create tab pages for just a few of the provided
examples. Any gui with a Custom tab page can open any of the library
example subroutines or any user file if it is in the linuxCNC subroutine
path.
To see special key bindings, click inside an ngcgui tab page to get
focus and then presss Control-k.
The demonstration subroutines should run on the simulated
machine configurations included in the distribution. A user
should always understand the behavior and purpose of a program
before running on a real machine.
|
Library Locations
In linuxCNC installations installed from deb packages, the simulation configs for ngcgui use symbolic links to non-user-writable Machinekit libraries for:
-
'nc_files/ngcgui_lib' ngcgui-compatible subfiles
-
'nc_files/ngcgui_lib/lathe' ngcgui-compatible lathe subfiles
-
'nc_files/gcmc_lib' ngcgui-gcmc-compatible programs
-
'nc_files/ngcgui_lib/utilitysubs' Helper subroutines
-
'nc_files/ngcgui_lib/mfiles' User M files
These libraries are located by ini file items that specify the search paths used by linuxCNC (and ngcgui):
[RS274NGC]
SUBROUTINE_PATH = ../../nc_files/ngcgui_lib:../../nc_files/gcmc_lib:../../nc_files/ngcgui_lib/utilitysubs
USER_M_PATH = ../../nc_files/ngcgui_lib/mfiles
Note
|
These are long lines (not continued on multiple lines) that specify the directories used in a search patch. The directory names are separated by colons (:). No spaces should occur between directory names. |
A user can create new directories for their own subroutines and M-files and add them to the search path(s).
For example, a user could create directories from the terminal with the commands:
mkdir /home/myusername/mysubs
mkdir /home/myusername/mymfiles
And then create or copy system-provided files to these user-writable directories. For instance, a user might create a ngcgui-compatible subfile named:
/home/myusername/mysubs/example.ngc
To use files in new directories, the ini file must be edited to include the new subfiles and to augment the search path(s). For this example:
[RS274NGC]
...
SUBROUTINE_PATH = /home/myusername/mysubs:../../nc_files/ngcgui_lib:../../nc_files/gcmc_lib:../../nc_files/ngcgui_lib/utilitysubs
USER_M_PATH = /home/myusername/mymfiles:../../nc_files/ngcgui_lib/mfiles
[DISPLAY]
...
NGCGUI_SUBFILE = example.ngc
...
Machinekit (and ngcgui) use the first file found when searching directories in the search path. With this behavior, you can supersede an ngcgui_lib subfile by placing a subfile with an identical name in a directory that is found earlier in the path search. More information can be found in the INI chapter of the Integrators Manual.
Standalone Usage
Standalone NGCGUI
For usage, type in a terminal:
ngcgui --help
Usage:
ngcgui --help | -?
ngcgui [Options] -D nc_files_directory_name
ngcgui [Options] -i Machinekit_inifile_name
ngcgui [Options]
Options:
[-S subroutine_file]
[-p preamble_file]
[-P postamble_file]
[-o output_file]
[-a autosend_file] (autosend to axis default:auto.ngc)
[--noauto] (no autosend to axis)
[-N | --nom2] (no m2 terminator (use %))
[--font [big|small|fontspec]] (default: "Helvetica -10 normal")
[--horiz|--vert] (default: --horiz)
[--cwidth comment_width] (width of comment field)
[--vwidth varname_width] (width of varname field)
[--quiet] (fewer comments in outfile)
[--noiframe] (default: frame displays image)
Note
|
As a standalone application, ngcgui handles a single subroutine file which can be invoked multiple times. Multiple standalone ngcgui applications can be started independently. |
Standalone PYNGCGUI
For usage, type in a terminal:
pyngcgui --help
Usage:
pyngcgui [Options] [sub_filename]
Options requiring values:
[-d | --demo] [0|1|2] (0: DEMO standalone toplevel)
(1: DEMO embed new notebook)
(2: DEMO embed within existing notebook)
[-S | --subfile sub_filename]
[-p | --preamble preamble_filename]
[-P | --postamble postamble_filename]
[-i | --ini inifile_name]
[-a | --autofile autoauto_filename]
[-t | --test testno]
[-H | --height height_of_entry widget] (typ 20-40)
[-K | --keyboardfile glade_file] (use custom popupkeyboard glade file)
Solo Options:
[-v | --verbose]
[-D | --debug]
[-N | --nom2] (no m2 terminator (use %))
[-n | --noauto] (save but do not automatically send result)
[-k | --keyboard] (use default popupkeybaord)
[-s | --sendtoaxis] (send generated ngc file to axis gui)
Notes:
A set of files is comprised of a preamble, subfile, postamble.
The preamble and postamble are optional.
One set of files can be specified from cmdline.
Multiple sets of files can be specified from an inifile.
If --ini is NOT specified:
search for a running linuxCNC and use it's inifile
Note
|
As a standalone application, pyngcgui can read an ini file (or a running linuxCNC application) to create tab pages for multiple subfiles. |
Embedding NGCGUI
Embedding NGCGUI in Axis
The following INI file items go in the [DISPLAY] section. (See additional sections below for additional items needed)
-
'TKPKG = Ngcgui 1.0' - the NGCGUI package
-
'TKPKG = Ngcguittt 1.0' - the True Type Tracer package for generating text for engraving (optional, must follow TKPKG = Ngcgui).
-
'TTT = truetype-tracer' - name of the truetype tracer program (it must be in user PATH)
-
'TTT_PREAMBLE = in_std.ngc' - Optional, specifies filename for preamble used for ttt created subfiles. (alternate: mm_std.ngc)
Note
|
The optional truetype tracer items are used to specify an ngcgui-compatible tab page that uses the application truetype-tracer. The truetype-tracer application must be installed independently and located in the user PATH. |
Embedding PYNGCGUI as a gladevcp tab page in a gui
The following INI file items go in the [DISPLAY] section for use with the axis, gscreen, or touchy guis. (See additional sections below for additional items needed)
EMBED_TAB_NAME = Pyngcgui - name to appear on embedded tab EMBED_TAB_COMMAND = gladevcp -x {XID} pyngcgui_axis.ui - invokes gladevcp EMBED_TAB_LOCATION = name_of_location - where the embeded page is located
Note
|
The EMBED_TAB_LOCATION specifier is not used for the axis gui. While pyngcgui can be embedded in axis, integration is more complete when using ngcgui (using TKPKG = Ngcgui 1.0). To specify the EMBED_TAB_LOCATION for other guis, see the example ini files. |
Note
|
The truetype tracer gui front-end is not currently available for gladevcp applications. |
Additional INI File items required for ngcgui or pyngcgui
The following INI file items go in the [DISPLAY] section for any gui that embeds either ngcgui or pyngcgui.
-
'NGCGUI_FONT = Helvetica -12 normal' - specifices the font name,size, normal|bold
-
'NGCGUI_PREAMBLE = in_std.ngc' - the preamble file to be added in front of the subroutines. When concatenating several common subroutine invocations, this preamble is only added once. For mm-based machines, use mm_std.ngc
-
'NGCGUI_SUBFILE = filename1.ngc' - creates a tab from the filename1 subroutine
-
'NGCGUI_SUBFILE = filename2.ngc' - creates a tab from the filename2 subroutine
-
'… etc'
-
'NGCGUI_SUBFILE = gcmcname1.gcmc' - creates a tab from the gcmcname1 file
-
'NGCGUI_SUBFILE = gcmcname2.gcmc' - creates a tab from the gcmcname2 file
-
'… etc'
-
'NGCGUI_SUBFILE = ""' - creates a custom tab that can open any subroutine in the search path
-
'NGCGUI_OPTIONS = opt1 opt2 …' - NGCGUI options
-
'nonew' - disallow making a new custom tab
-
'noremove' - disallow removing any tab page
-
'noauto' - no autosend (use makeFile, then save or manually send)
-
'noiframe' - no internal image, display images on separate top level widget
-
'nom2' - do not terminate with m2, use % terminator. This option eliminates all the side effects of m2 termination
-
-
'GCMC_INCLUDE_PATH = dirname1:dirname2' - search directories for gcmc include files
This is an example of embedding NGCGUI into Axis. The subroutines need to be in a directory specified by the [RS274NGC]SUBROUTINE_PATH. Some example subroutines use other subroutines so check to be sure you have the dependences, if any, in a SUBROUTINE_PATH directory. Some subroutines may use custom Mfiles which must be in a directory specified by the [RS274NGC]USER_M_PATH.
The Gcode-meta-compiler (gcmc) can include statements like: include("filename.inc.gcmc"); By default, gcmc includes the current directory which, for linuxCNC, will be the directory containing the linuxCNC ini file. Additional directories can be prepended to the gcmc search order with the GCMC_INCLUDE_PATH item.
[RS274NGC]
...
SUBROUTINE_PATH = ../../nc_files/ngcgui_lib:../../ngcgui_lib/utilitysubs
USER_M_PATH = ../../nc_files/ngcgui_lib/mfiles
[DISPLAY]
TKPKG = Ngcgui 1.0
TKPKG = Ngcguittt 1.0
# Ngcgui must precede Ngcguittt
NGCGUI_FONT = Helvetica -12 normal
# specify filenames only, files must be in [RS274NGC]SUBROUTINE_PATH
NGCGUI_PREAMBLE = in_std.ngc
NGCGUI_SUBFILE = simp.ngc
NGCGUI_SUBFILE = xyz.ngc
NGCGUI_SUBFILE = iquad.ngc
NGCGUI_SUBFILE = db25.ngc
NGCGUI_SUBFILE = ihex.ngc
NGCGUI_SUBFILE = gosper.ngc
# specify "" for a custom tab page
NGCGUI_SUBFILE = ""
#NGCGUI_SUBFILE = "" use when image frame is specified if
# opening other files is required
# images will be put in a top level window
NGCGUI_OPTIONS =
#NGCGUI_OPTIONS = opt1 opt2 ...
# opt items:
# nonew -- disallow making a new custom tab
# noremove -- disallow removing any tab page
# noauto -- no auto send (makeFile, then manually send)
# noiframe -- no internal image, image on separate top level
GCMC_INCLUDE_PATH = /home/myname/gcmc_includes
TTT = truetype-tracer
TTT_PREAMBLE = in_std.ngc
PROGRAM_PREFIX = ../../nc_files
Note
|
The above is not a complete axis gui INI — the items show are those used by ngcgui. Many additional items are required by Machinekit to have a complete INI file. |
Truetype Tracer
Ngcgui_ttt provides support for truetype-tracer (v4). It creates an axis tab page which allows a user to create a new ngcgui tab page after entering text and selecting a font and other parameters. (Truetype-tracer must be installed independently).
To embed ngcgui_ttt in axis, specify the following items in addition to ngcgui items:
Item: [DISPLAY]TKPKG = Ngcgui_ttt version_number Example: [DISPLAY]TKPKG = Ngcgui_ttt 1.0 Note: Mandatory, specifies loading of ngcgui_ttt in an axis tab page named ttt. Must follow the TKPKG = Ngcgui item. Item: [DISPLAY]TTT = path_to_truetype-tracer Example: [DISPLAY]TTT = truetype-tracer Note: Optional, if not specified, attempt to use /usr/local/bin/truetype-tracer. Specify with absolute pathname or as a simple executable name in which case the user PATH environment will used to find the program. Item: [DISPLAY]TTT_PREAMBLE = preamble_filename Example: [DISPLAY]TTT_PREAMBLE = in_std.ngc Note: Optional, specifies filename for preamble used for ttt created subfiles.
INI File Path Specifications
Ngcgui uses the linuxCNC search path to find files.
The search path begins with the standard directory specified by:
[DISPLAY]PROGRAM_PREFIX = directory_name
followed by multiple directories specfied by:
[RS274NGC]SUBROUTINE_PATH = directory1_name:directory1_name:directory3_name ...
Directories may be specifed as absolute paths or relative paths.
Example: [DISPLAY]PROGRAM_PREFIX = /home/myname/machinekit/nc_files Example: [DISPLAY]PROGRAM_PREFIX = ~/machinekit/nc_files Example: [DISPLAY]PROGRAM_PREFIX = ../../nc_files
An absolute path beginning with a "/" specifies a complete filesystem location. A path beginning with a "\~/" specifies a path starting from the user’s home directory. A path beginning with "~username/" specifies a path starting in username’s home directory.
Relative paths are based on the startup directory which is the directory containing the INI file. Using relative paths can facilitate relocation of configurations but requires a good understanding of linux path specifiers.
./d0 is the same as d0, e.g., a directory named d0 in the startup directory ../d1 refers to a directory d1 in the parent directory ../../d2 refers to a directory d2 in the parent of the parent directory ../../../d3 etc.
Multiple directories can be specified with [RS274NGC]SUBROUTINE_PATH by separating them with colons. The following example illustrates the format for multiple directories and shows the use of relative and absolute paths.
[RS274NGC]SUBROUTINE_PATH = ../../nc_files/ngcgui_lib:../../nc_files/ngcgui_lib/utilitysubs:/tmp/tmpngc`
This is one long line, do not continue on multiple lines. When linuxCNC and/or ngcgui searches for files, the first file found in the search is used.
Machinekit (and ngcgui) must be able to find all subroutines including helper routines that are called from within ngcgui subfiles. It is convenient to place utility subs in a separate directory as indicated in the example above.
The distribution includes the ngcgui_lib directory and demo files for preambles, subfiles, postambles and helper files. To modify the behavior of the files, you can copy any file and place it in an earlier part of the search path. The first directory searched is [DISPLAY]PROGRAM_PREFIX. You can use this directory but it is better practice to create dedicated directory(ies) and put them at the beginning of the [RS274NGC]SUBROUTINE_PATH.
In the following example, files in /home/myname/machinekit/mysubs will be found before files in ../../nc_files/ngcgui_lib.
[RS274NGC]SUBROUTINE_PATH = /home/myname/machinekit/mysubs:../../nc_files/ngcgui_lib:../../nc_files/ngcgui_lib/utilitysubs`
New users may inadvertently try to use files that are not structured to be compatible with ngcgui requirements. Ngcgui will likely report numerous errors if the files are not coded per its conventions. Good practice suggests that ngcgui-compatible subfiles should be placed in a directory dedicated to that purpose and that preamble, postamble, and helper files should be in separate directory(ies) to discourage attempts to use them as subfiles. Files not intended for use as subfiles can include a special comment: "(not_a_subfile)" so that ngcgui will reject them automatically with a relevant message.
Summary of INI File item details for NGCGUI usage
Item: [RS274NGC]SUBROUTINE_PATH = dirname1:dirname2:dirname3 ... Example: [RS274NGC]SUBROUTINE_PATH = ../../nc_files/ngcgui_lib:../../nc_files/ngcgui_lib/utilitysubs Note: Optional, but very useful to organize subfiles and utility files Item: [RS274NGC]USER_M_PATH = dirname1:dirname2:dirname3 ... Example: [RS274NGC]USER_M_PATH = ../../nc_files/ngcgui_lib/mfiles Note: Optional, needed to locate custom user mfiles Item: [DISPLAY]EMBED_TAB_NAME = name to display on embedded tab page Example: [DISPLAY]EMBED_TAB_NAME = Pyngcgui Note: The entries: EMBED_TAB_NAME,EMBED_TAB_COMMAND,EMBED_TAB_LOCATION define an embedded application for several linuxCNC guis Item: [DISPLAY]EMBED_TAB_COMMAND = programname followed by arguments Example: [DISPLAY]EMBED_TAB_COMMAND = gladevcp -x {XID} pyngcgui_axis.ui Note: For gladevcp applications, see the man page for gladevcp Item: [DISPLAY]EMBED_TAB_LOCATION = name_of_location Example: [DISPLAY]EMBED_TAB_LOCATION = notebook_main Note: See example INI files for possible locations Not required for the axis gui Item: [DISPLAY]PROGRAM_PREFIX = dirname Example: [DISPLAY]PROGRAM_PREFIX = ../../nc_files Note: Mandatory and needed for numerous linuxCNC functions It is the first directory used in the search for files item: [DISPLAY]TKPKG = Ngcgui version_number Example: [DISPLAY]TKPKG = Ngcgui 1.0 Note: Required only for axis gui embedding, specifies loading of ngcgui axis tab pages Item: [DISPLAY]NGCGUI_FONT = font_descriptor Example: [DISPLAY]NGCGUI_FONT = Helvetica -12 normal Note: Optional, font_descriptor is a tcl-compatible font specifier with items for fonttype -fontsize fontweight Default is: Helvetica -10 normal Smaller font sizes may be useful for small screens Larger font sizes may be helpful for touch screen applications Item: [DISPLAY]NGCGUI_SUBFILE = subfile_filename Example: [DISPLAY]NGCGUI_SUBFILE = simp.ngc Example: [DISPLAY]NGCGUI_SUBFILE = square.gcmc Example: [DISPLAY]NGCGUI_SUBFILE = "" Note: Use one or more items to specify ngcgui-compatible subfiles or gcmc programs that require a tab page on startup. A "Custom" tab will be created when the filename is "". A user can use a "Custom" tab to browse the file system and identify preamble, subfile, and postamble files. Item: [DISPLAY]NGCGUI_PREAMBLE = preamble_filename Example: [DISPLAY]NGCGUI_PREAMBLE = in_std.ngc Note: Optional, when specified, the file is prepended to a subfile. Files created with "Custom" tab pages use the preamble specified with the page. Item: [DISPLAY]NGCGUI_POSTAMBLE = postamble_filename Example: [DISPLAY]NGCGUI_POSTAMBLE = bye.ngc Note: Optional, when specified, the file is appended to a subfiles. Files created with "Custom" tab pages use the postamble specified with the page. Item: [DISPLAY]NGCGUI_OPTIONS = opt1 opt2 ... Example: [DISPLAY]NGCGUI_OPTIONS = nonew noremove Note: Multiple options are separated by blanks. By default, ngcgui configures tab pages so that: 1) a user can make new tabs 2) a user can remove tabs (except for the last remaining one) 3) finalized files are automatically sent to linuxCNC 4) an image frame (iframe) is made available to display an image for the subfile (if an image is provided) 5) the ngcgui result file sent to linuxCNC is terminated with an m2 (and incurs m2 side-effects) The options nonew, noremove, noauto, noiframe, nom2 respectively disable these default behaviors. By default, if an image (.png,.gif,jpg,pgm) file is found in the same directory as the subfile, the image is displayed in the iframe. Specifying the noiframe option makes available additional buttons for selecting a preamble, subfile, and postamble and additional checkboxes. Selections of the checkboxes are always available with special keys: Ctrl-R Toggle "Retain values on Subfile read" Ctrl-E Toggle "Expand subroutine" Ctrl-a Toggle "Autosend" (Ctrl-k lists all keys and functions) If noiframe is specified and an image file is found, the image is displayed in a separate window and all functions are available on the tab page. The NGCGUI_OPTIONS apply to all ngcgui tabs except that the nonew, noremove, and noiframe options are not applicable for "Custom" tabs. Do not use "Custom" tabs if you want to limit the user's ability to select subfiles or create additional tab pages. Item: [DISPLAY]GCMC_INCLUDE_PATH = dirname1:dirname2:... Example: [DISPLAY]GCMC_INCLUDE_PATH = /home/myname/gcmc_includes:/home/myname/gcmc_includes2 Note: Optional, each directory will be included when gcmc is invoked using the option: --include dirname
File Requirements for NGCGUI Compatibility
Single-File Gcode (.ngc) Subroutine Requirements
An NGCGUI-compatible subfile contains a single subroutine definition. The name of the subroutine must be the same as the filename (not including the .ngc suffix). Machinekit supports named or numbered subroutines, but only named subroutines are compatible with NGCGUI. For more information see the O-Codes Chapter.
The first non-comment line should be a sub statement. The last non-comment line should be a endsub statement.
(info: info_text_to_appear_at_top_of_tab_page)
; comment line beginning with semicolon
( comment line using parentheses)
o<examp> sub
BODY_OF_SUBROUTINE
o<examp> endsub
; comment line beginning with semicolon
( comment line using parentheses)
The body of the subroutine should begin with a set of statements that define local named parameters for each positional parameter expected for the subroutine call. These definitions must be consecutive beginning with #1 and ending with the last used parameter number. Definitions must be provided for each of these parameters (no omissions).
#<xparm> = #1
#<yparm> = #2
#<zparm> = #3
Machinekit considers all numbered parameters in the range #1 thru #30 to be calling parameters so ngcgui provides entry boxes for any occurence of parameters in this range. It is good practice to avoid use of numbered parameters #1 through #30 anywhere else in the subroutine. Using local, named parameters is recommended for all internal variables.
Each defining statement may optionally include a special comment and a default value for the parameter.
#<vname> = #n (=default_value)
or
#<vname> = #n (comment_text)
or
#<vname> = #n (=default_value comment_text)
#<xparm> = #1 (=0.0)
#<yparm> = #2 (Ystart)
#<zparm> = #3 (=0.0 Z start setting)
If a default_value is provided, it will be entered in the entry box for the parameter on startup.
If comment_text is included, it will be used to identify the input instead of the parameter name.
Notes on global named parameters and ngcgui:
(global named parameters have a leading underscore in the name, like #<_someglobalname>)
As in many programming languages, use of globals is powerful but can often lead to unexpected consequences. In Machinekit, existing global named parameters will be valid at subroutine execution and subroutines can modify or create global named parameters.
Passing information to subroutines using global named parameters is discouraged since such usage requires the establishment and maintenance of a well-defined global context that is difficult to maintain. Using numbered parameters #1 thru #30 as subroutine inputs should be sufficient to satisfy a wide range of design requirements.
While input global named parameters are discouraged, linuxCNC subroutines must use global named parameters for returning results. Since ngcgui-compatible subfiles are aimed at gui usage, return values are not a common requirement. However, ngcgui is useful as a testing tool for subroutines which do return global named parameters and it is common for ngcgui-compatible subfiles to call utility subroutine files that return results with global named parameters.
To support these usages, ngcgui ignores global named parameters that include a colon (:) character in their name. Use of the colon (:) in the name prevents ngcgui from making entryboxes for these parameters.
o<examp> sub
...
#<_examp:result> = #5410 (return the current tool diameter)
...
o<helper> call [#<x1>] [#<x2>] (call a subroutine)
#<xresult> = #<_helper:answer> (immediately localize the helper global result)
#<_helper:answer> = 0.0 (nullify global named parameter used by subroutine)
...
o<examp> endsub
In the above example, the utility subroutine will be found in a separate file named helper.ngc. The helper routine returns a result in a global named parameter named #<_helper:answer.
For good practice, the calling subfile immediately localizes the result for use elsewhere in the subfile and the global named parameter used for returning the result is nullified in an attempt to mitigate its inadvertent use elsewhere in the global context. (A nullification value of 0.0 may not always be a good choice).
Ngcgui supports the creation and concatenation of multiple features for a subfile and for multiple subfiles. It is sometimes useful for subfiles to determine their order at runtime so ngcgui inserts a special global parameter that can be tested within subroutines. The parameter is named #<_feature:>. Its value begins with a value of 0 and is incremented for each added feature.
A special 'info' comment can be included anywhere in an ngcgui-compatible subfile. The format is:
(info: info_text)
The info_text is displayed near the top of the ngcgui tab page in axis.
Files not intended for use as subfiles can include a special comment so that ngcgui will reject them automatically with a relevant message.
(not_a_subfile)
An optional image file (.png,.gif,.jpg,.pgm) can accompany a subfile. The image file can help clarify the parameters used by the subfile. The image file should be in the same directory as the subfile and have the same name with an appropriate image suffix, e.g. the subfile example.ngc could be accompanied by an image file examp.png. Ngcgui attempts to resize large images by subsampling to a size with maximum width of 320 and maximum height of 240 pixels.
None of the conventions required for making an ngcgui-compatible subfile preclude its use as general purpose subroutine file for Machinekit.
The Machinekit distribution includes a library (ngcgui_lib directory) that includes both example ngcgui-compatible subfiles and utility files to illustrate the features of Machinekit subroutines and ngcgui usage. Another libary (gcmc_lib) provides examples for subroutine files for the Gcode meta compiler (gcmc)
Additional user sumitted subroutines can be found on the Forum in the Subroutines Section.
Gcode-meta-compiler (.gcmc) file requirements
Files for the Gcode-meta-compiler (gcmc) are read by ngcgui and it creates entry boxes for variables tagged in the file. When a feature for the file is finalized, ngcgui passes the file as input to the gcmc compiler and, if the compile is successful, the resulting gcode file is sent to linuxCNC for execution. The resulting file is formatted as single-file subroutine; .gcmc files and .ngc files can be intermixed by ngcgui.
The variables identified for inclusion in ngcgui are tagged with lines that will appear as comments to the gcmc compiler.
//ngcgui: varname1 =
//ngcgui: varname2 = value2
//ngcgui: varname3 = value3, label3;
//ngcgui: zsafe =
//ngcgui: feedrate = 10
//ngcgui: xl = 0, x limit
For these examples, the entry box for varname1 will have no default, the entry box for varname2 will have a default of value2, and the entry box for varname 3 will have a default of value 3 and a label label3 (instead of varname3). The default values must be numbers.
To make it easier to modify valid lines in a gcmc file, alternate tag line formats accepted. The alternate formats ignore trailing semicolons (;) and trailing comment markers (//) With this provision, it is often makes it possible to just add the //ngcgui: tag to existing lines in a .gcmc file.
//ngcgui: varname2 = value2;
//ngcgui: varname3 = value3; //, label3;
//ngcgui: feedrate = 10;
//ngcgui: xl = 0; //, x limit
An info line that will appear at the top of a tab page may be optionally included with a line tagged as:
//ngcgui: info: text_to_appear_at_top_of_tab_page
When required, options can be passed to the gcmc compiler with a line tagged:
//ngcgui: -option_name [ [=] option_value]
//ngcgui: -I
//ngcgui: --imperial
//ngcgui: --precision 5
//ngcgui: --precision=6
Options for gcmc are available with the terminal command:
gcmc --help
A gcmc program by default uses metric mode. The mode can be set to inches with the option setting:
//ngcgui: --imperial
A preamble file, if used, can set a mode (g20 or g21) that conflicts with the mode used by a gcmc file. To ensure that the gcmc program mode is in effect, include the following statement in the .gcmc file:
include("ensure_mode.gcmc")
and provide a proper path for gcmc include_files in the ini file, for example:
[DISPLAY]
GCMC_INCLUDE_PATH = ../../nc_files/gcmc_lib
DB25 Example
The following shows the DB25 subroutine. In the first photo you see where you fill in the blanks for each variable.
![ngcgui db25 1](/docs/gui/images/ngcgui-db25-1.png)
This photo shows the backplot of the DB25 subroutine.
![ngcgui db25 2](/docs/gui/images/ngcgui-db25-2.png)
This photo shows the use of the new button and the custom tab to create three DB25 cutouts in one program.
![ngcgui db25 3](/docs/gui/images/ngcgui-db25-3.png)
